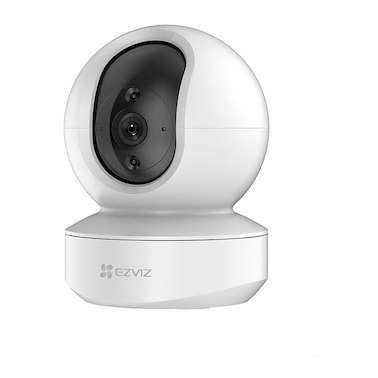

Ezviz CS-TY1 - 360 Degree 1080P Smart Home Camera - White

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR

Compression

• Video Compression: H.264
• Video Bit Rate: Adaptive bit rate.


• Max. Resolution: 1920 × 1080
• Frame Rate: Max:15fps; Self-Adaptive during network transmission

Network

• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP pairing
• Protocol: EZVIZ Cloud proprietary protocol
• Interface Protocol: EZVIZ Cloud proprietary protocol

Interface

• Storage: MicroSD card slot (Max. 256GB)
• Power: Micro USB
• Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
• Operating Environment
• Temperature: -10°C to 45°C (14°F to 113 °F)
• Humidity: 95% or less (non-condensing)

General

• Power Supply: DC 5V/1A
• Power Consumption: 5W max
• IR Range: MAX. 10 meters (32.81 ft.)
• Dimensions: 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)
• Packaging Dimensions: 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
• Net Weight: 259g (9.14oz)

In the box

• TY1 Pan/Tilt Camera
• Base
• Screw Kit
• Power Cable 3m (9.8 ft.)
• Drill Template
• Power Adapter
• Quick Start Guide
